Vertical Lathes

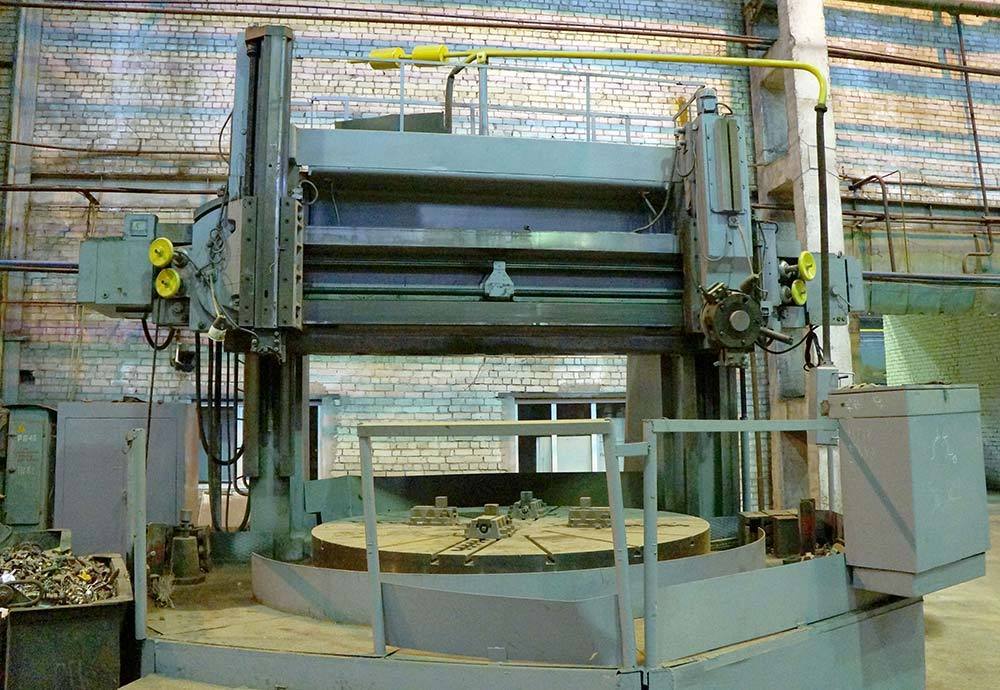

Vertical turret lathe series 1525

Vertical turret lathe series 1L532

Turning diameter, mm 3200 (126")
Table diameter, mm 2800 (110")
Max. turning height, mm 1600 (63")
Workpiece weight, kg 16000
Vertical ram stroke, mm 1200 (47.24")

Manufacturer: SEDIN

Manufacturer: SEDIN



Turning diameter, mm 2500 (99")

Table diameter, mm 2250 (88")

Max. turning height, mm 1600 (63")

Workpiece weight, kg 13000

Vertical ram stroke, mm 1200 (47.24")

Double column Vertical lathe series 1532T

Turning diameter, mm (inch) 3200 (126")
Table diameter, mm (inch) 3200 (126")
Max. turning height, mm (inch) 2000 (78.7")
Workpiece weight, kg (lb.) 40000 (88185)
Vertical ram stroke, mm (inch) 1250 (49.2")
Horizontal stroke of toolhead, mm (inch) 1960 (77")

Manufacturer: KOLOMNA

Double column Vertical lathe series 1540

Turning diameter, mm (inch) 4000 (157")
Table diameter, mm (inch) 4000 (157")
Max. turning height, mm (inch) 2000 (78.7")
Workpiece weight, kg (lb.) 63000 (139000)
Vertical ram stroke, mm (inch) 1250 (49.2")
Horizontal stroke of toolhead, mm (inch) 2300 (91")

Manufacturer: KOLOMNA

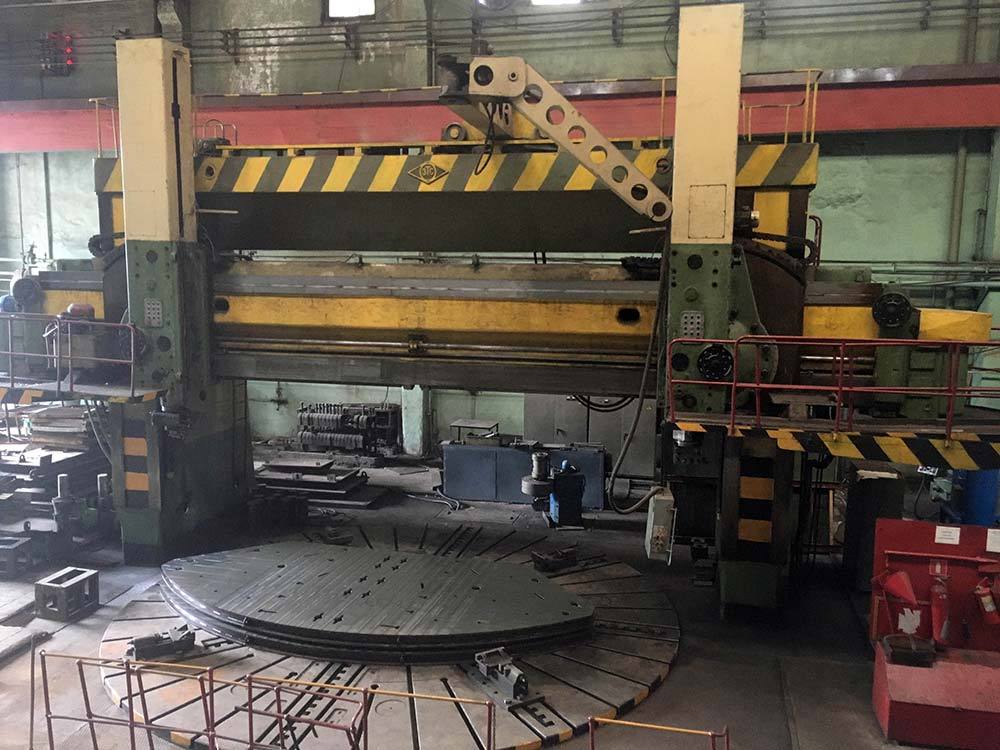

Double column Vertical lathe series 1580L

Turning diameter, mm (inch) 8000 (315")
Table diameter, mm (inch) 7100 (280")
Max. turning height, mm (inch) 3200 (126")
Workpiece weight, kg (lb.) 160000 (352700)

Number of toolheads 2

Manufacturer: KOLOMNA

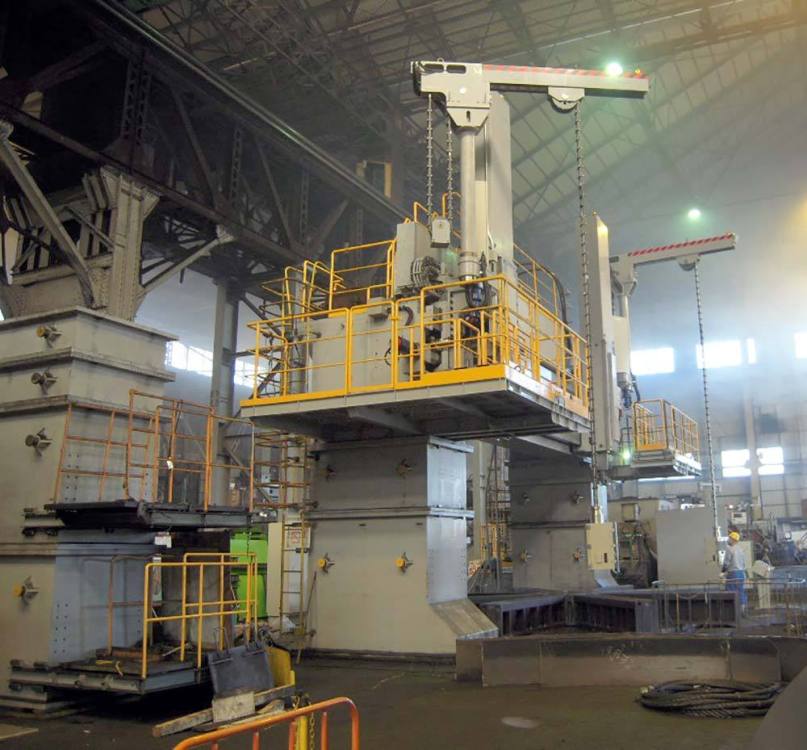

Vertical lathe KU-208, turning diameter 630"

Manufacturer: KOLOMNA

gallery/vertical-lathe-series-1l532

Turning diameter, mm (inch):

- on the table 7000 (276");

- on the floor plates 16000 (630")

Table diameter, mm (inch) 5600 (220.1")
Max. turning height (with spacers), mm (inch) 5000 (197")

Workpiece weight, kg (lb.) 80000 (176400)
Number of toolheads 2
